Add-Ons

HSE v1

High Speed Expansion

The high speed expansion (HSE) v1 connector exposes a number of high-speed interfaces directly into the SoC: 4x PCI Express Lanes, SATA, USB, MIPI DSI and CSI. Any combination of these interfaces may be utilized on an HSE v1 add-on. (Only one add-on can be mounted on the board at a time.) See the Compare Boards page to verify which expansion connectors are on your board.

LSE v1

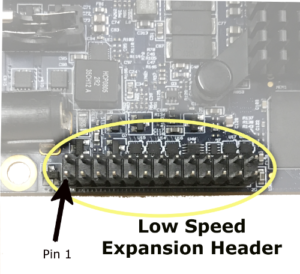

Low Speed Expansion

The low speed expansion (LSE) v1 header exposes a number of slow-speed interfaces buffered through a CPLD into the SoC: 10 GPIO, 1 Full UART, a 2 line UART, SPI and I2S, power at 3v3 and 5v and ground. All of these signals may be utilized on an LSE v1 add-on. (Only one add-on can be mounted on the board at a time.) See the Compare Boards page to verify which expansion headers are on your board.

Design files

Add-On Header Design files Supplier Used for
Debugger Lure HSE v1

Not available

 Tin Can Tools Adding IDP JTAG

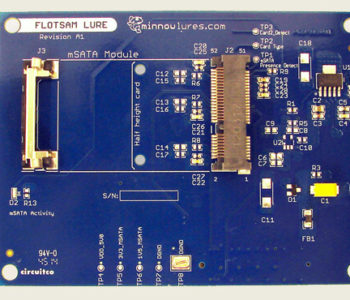

Flotsam Lure HSE v1

Available on GitHub

 CircuitCo Adding mSATA

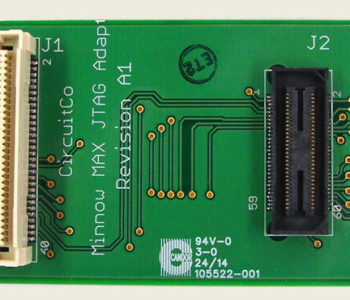

IDP JTAG Lure HSE v1

Available on GitHub

 CircuitCo Adding IDP JTAG
Jetsam Lure HSE v1

Available on GitHub

 CircuitCo Adding mPCIe

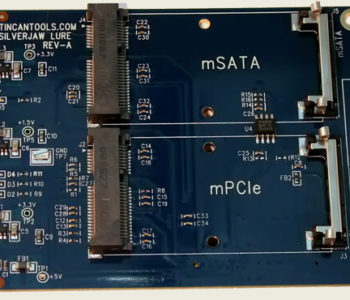

Silverjaw Lure HSE v1

Available on GitHub

 Tin Can Tools Adding mPCIe & mSATA
Calamari Lure LSE v1

Available on GitHub

 Working with GPIO

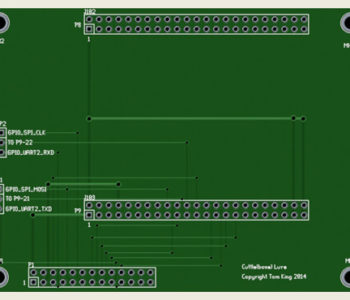

Cuttle(bone) Lure LSE v1

Available on GitHub

 Adapter to BeagleBone Capes

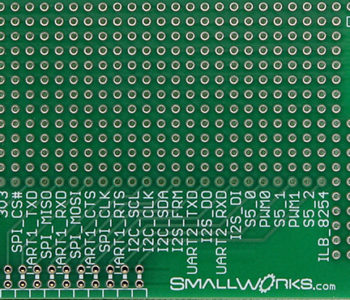

Desert Lure LSE v1

Available on GitHub

 Netgate Prototyping

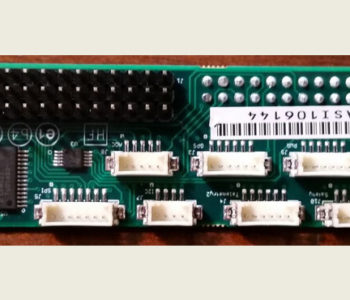

Drone Lure LSE v1

Available on GitHub

 Flying drones

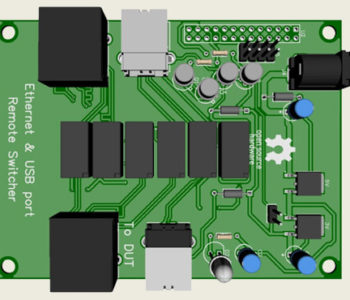

Ethernet and USB Switcher Lure LSE v1

Available on GitHub

 Adding Ethernet and USB

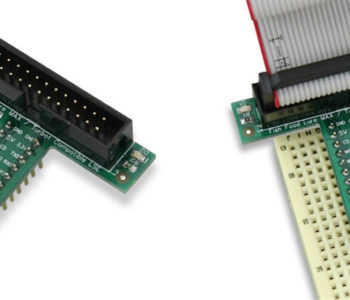

Fish Food Lure LSE v1

Available on GitHub

 Netgate Breadboard prototyping

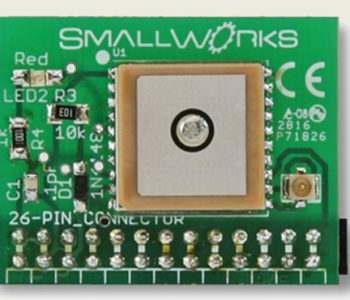

GPS Lure LSE v1

Available on GitHub

 Netgate Adding GPS

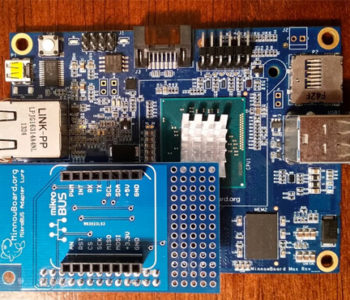

Mikrobus Lure LSE v1

Available on GitHub

 Adapter to Mikrobus Models

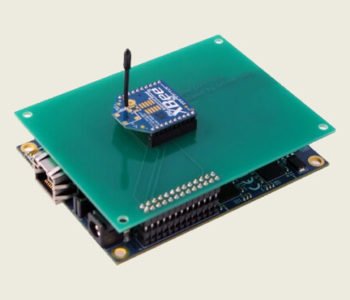

Moray Lure (XBee) LSE v1

Not available

 Netgate 802.15.4 ZigBee
Prototype Lure LSE v1

Available on GitHub

 CircuitCo Prototyping

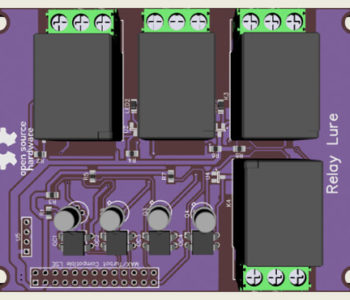

Relay Lure LSE v1

Available on GitHub

 Adding 4-channels

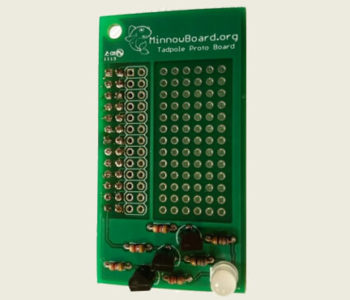

Tadpole Lure LSE v1

Available on GitHub

 Adding single GPIO-controlled RGB LED and breakout /prototype area
